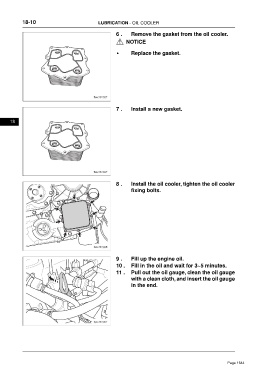

Page 1544 - Foton Workshop Manual - Tunland (AT)
P. 1544
18-10 LUBRICATION - OIL COOLER
6 . Remove the gasket from the oil cooler.
NOTICE
• Replace the gasket.
7 . Install a new gasket.
18
8 . Install the oil cooler, tighten the oil cooler
fixing bolts.
9 . Fill up the engine oil.
10 . Fill in the oil and wait for 3~5 minutes.
11 . Pull out the oil gauge, clean the oil gauge
with a clean cloth, and insert the oil gauge
in the end.
Page 1544
