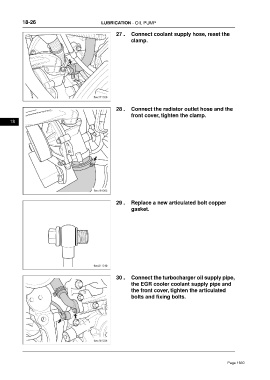

18-26 LUBRICATION - OIL PUMP
27 . Connect coolant supply hose, reset the
clamp.
28 . Connect the radiator outlet hose and the
front cover, tighten the clamp.
18
29 . Replace a new articulated bolt copper
gasket.
30 . Connect the turbocharger oil supply pipe,
the EGR cooler coolant supply pipe and
the front cover, tighten the articulated
bolts and fixing bolts.
