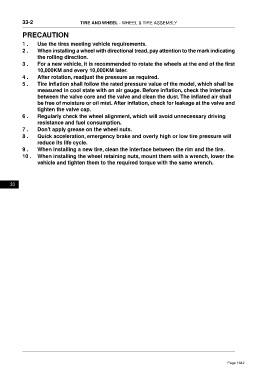

Page 1642 - Foton Workshop Manual - Tunland (AT)

33-2 TIRE AND WHEEL - WHEEL & TIRE ASSEMBLY

PRECAUTION

1 . Use the tires meeting vehicle requirements.
2 . When installing a wheel with directional tread, pay attention to the mark indicating
the rolling direction.
3 . For a new vehicle, it is recommended to rotate the wheels at the end of the first
10,000KM and every 10,000KM later.
4 . After rotation, readjust the pressure as required.
5 . Tire inflation shall follow the rated pressure value of the model, which shall be
measured in cool state with an air gauge. Before inflation, check the interface
between the valve core and the valve and clean the dust.The inflated air shall
be free of moisture or oil mist. After inflation, check for leakage at the valve and
tighten the valve cap.
6 . Regularly check the wheel alignment, which will avoid unnecessary driving
resistance and fuel consumption.
7 . Don't apply grease on the wheel nuts.
8 . Quick acceleration, emergency brake and overly high or low tire pressure will
reduce its life cycle.
9 . When installing a new tire, clean the interface between the rim and the tire.
10 . When installing the wheel retaining nuts, mount them with a wrench, lower the
vehicle and tighten them to the required torque with the same wrench.

33

Page 1642
