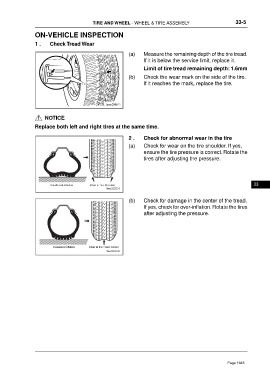

Page 1645 - Foton Workshop Manual - Tunland (AT)

TIRE AND WHEEL - WHEEL & TIRE ASSEMBLY 33-5

ON-VEHICLE INSPECTION

1 . Check Tread Wear

(a) Measure the remaining depth of the tire tread.
If it is below the service limit, replace it.

Limit of tire tread remaining depth: 1.6mm
(b) Check the wear mark on the side of the tire.
If it reaches the mark, replace the tire.

NOTICE
Replace both left and right tires at the same time.

2 . Check for abnormal wear in the tire

(a) Check for wear on the tire shoulder. If yes,
ensure the tire pressure is correct. Rotate the
tires after adjusting the pressure.

33

(b) Check for damage in the center of the tread.
If yes, check for over-inflation. Rotate the tires
after adjusting the pressure.
