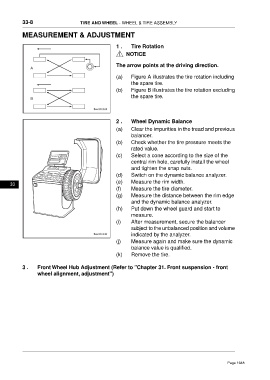

33-8 TIRE AND WHEEL - WHEEL & TIRE ASSEMBLY

MEASUREMENT & ADJUSTMENT

1 . Tire Rotation

NOTICE

The arrow points at the driving direction.

(a) Figure A illustrates the tire rotation including
the spare tire.
(b) Figure B illustrates the tire rotation excluding
the spare tire.

2 . Wheel Dynamic Balance
(a) Clear the impurities in the tread and previous
balancer.
(b) Check whether the tire pressure meets the
rated value.
(c) Select a cone according to the size of the
central rim hole, carefully install the wheel
and tighten the snap nuts.
(d) Switch on the dynamic balance analyzer.
(e) Measure the rim width.
33
(f) Measure the tire diameter.
(g) Measure the distance between the rim edge
and the dynamic balance analyzer.
(h) Put down the wheel guard and start to
measure.
(i) After measurement, secure the balancer
subject to the unbalanced position and volume
indicated by the analyzer.
(j) Measure again and make sure the dynamic
balance value is qualified.
(k) Remove the tire.

3 . Front Wheel Hub Adjustment (Refer to "Chapter 31. Front suspension - front
wheel alignment, adjustment")
