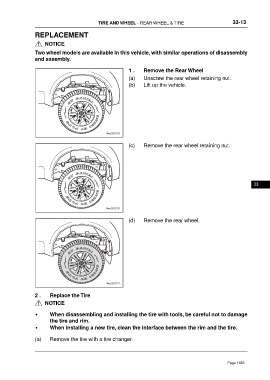

TIRE AND WHEEL - REAR WHEEL & TIRE 33-13

REPLACEMENT

NOTICE
Two wheel models are available in this vehicle, with similar operations of disassembly
and assembly.

1 . Remove the Rear Wheel

(a) Unscrew the rear wheel retaining nut.
(b) Lift up the vehicle.

(c) Remove the rear wheel retaining nut.

33

(d) Remove the rear wheel.

2 . Replace the Tire
NOTICE

• When disassembling and installing the tire with tools, be careful not to damage
the tire and rim.
• When installing a new tire, clean the interface between the rim and the tire.

(a) Remove the tire with a tire changer.
