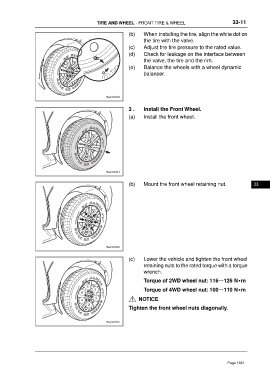

TIRE AND WHEEL - FRONT TIRE & WHEEL 33-11

(b) When installing the tire, align the white dot on
the tire with the valve.
(c) Adjust the tire pressure to the rated value.
(d) Check for leakage on the interface between
the valve, the tire and the rim.
(e) Balance the wheels with a wheel dynamic
balancer.

3 . Install the Front Wheel.
(a) Install the front wheel.

(b) Mount the front wheel retaining nut. 33

(c) Lower the vehicle and tighten the front wheel
retaining nuts to the rated torque with a torque
wrench.

Torque of 2WD wheel nut: 116～126 N•m
Torque of 4WD wheel nut: 100～110 N•m

NOTICE
Tighten the front wheel nuts diagonally.
