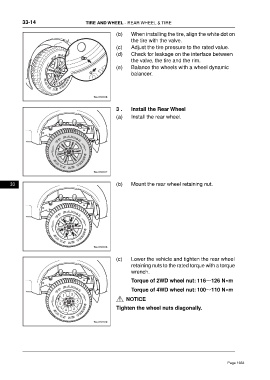

33-14 TIRE AND WHEEL - REAR WHEEL & TIRE

(b) When installing the tire, align the white dot on
the tire with the valve.
(c) Adjust the tire pressure to the rated value.
(d) Check for leakage on the interface between
the valve, the tire and the rim.
(e) Balance the wheels with a wheel dynamic
balancer.

3 . Install the Rear Wheel
(a) Install the rear wheel.

33 (b) Mount the rear wheel retaining nut.

(c) Lower the vehicle and tighten the rear wheel
retaining nuts to the rated torque with a torque
wrench.

Torque of 2WD wheel nut: 116～126 N•m
Torque of 4WD wheel nut: 100～110 N•m

NOTICE
Tighten the wheel nuts diagonally.
