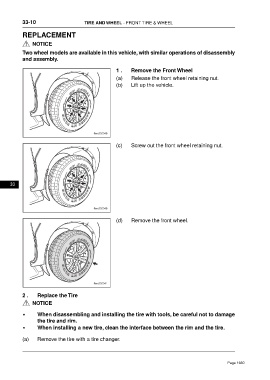

33-10 TIRE AND WHEEL - FRONT TIRE & WHEEL

REPLACEMENT

NOTICE
Two wheel models are available in this vehicle, with similar operations of disassembly
and assembly.

1 . Remove the Front Wheel

(a) Release the front wheel retaining nut.
(b) Lift up the vehicle.

(c) Screw out the front wheel retaining nut.

33

(d) Remove the front wheel.

2 . Replace the Tire
NOTICE

• When disassembling and installing the tire with tools, be careful not to damage
the tire and rim.
• When installing a new tire, clean the interface between the rim and the tire.

(a) Remove the tire with a tire changer.
