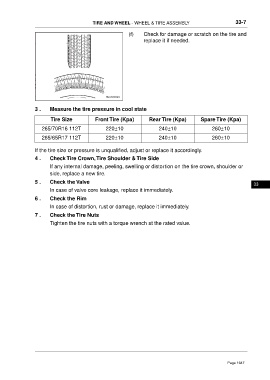

TIRE AND WHEEL - WHEEL & TIRE ASSEMBLY 33-7

(f) Check for damage or scratch on the tire and
replace it if needed.

3 . Measure the tire pressure in cool state

Tire Size Front Tire (Kpa) Rear Tire (Kpa) Spare Tire (Kpa)

265/70R16 112T 220±10 240±10 260±10
265/65R17 112T 220±10 240±10 260±10

If the tire size or pressure is unqualified, adjust or replace it accordingly.
4 . Check Tire Crown,Tire Shoulder & Tire Side
If any internal damage, peeling, swelling or distortion on the tire crown, shoulder or
side, replace a new tire.

5 . Check the Valve
33
In case of valve core leakage, replace it immediately.

6 . Check the Rim
In case of distortion, rust or damage, replace it immediately.
7 . Check the Tire Nuts
Tighten the tire nuts with a torque wrench at the rated value.
