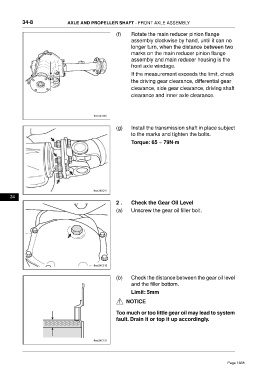

34-8 AXLE AND PROPELLER SHAFT - FRONT AXLE ASSEMBLY

(f) Rotate the main reducer pinion flange
assembly clockwise by hand, until it can no
longer turn, when the distance between two
marks on the main reducer pinion flange
assembly and main reducer housing is the
front axle windage.
If the measurement exceeds the limit, check
the driving gear clearance, differential gear
clearance, side gear clearance, driving shaft
clearance and inner axle clearance.

(g) Install the transmission shaft in place subject
to the marks and tighten the bolts.

Torque: 65 ~ 79N·m

34
2 . Check the Gear Oil Level
(a) Unscrew the gear oil filler bolt.

(b) Check the distance between the gear oil level
and the filler bottom.
Limit: 5mm

NOTICE

Too much or too little gear oil may lead to system
fault. Drain it or top it up accordingly.
