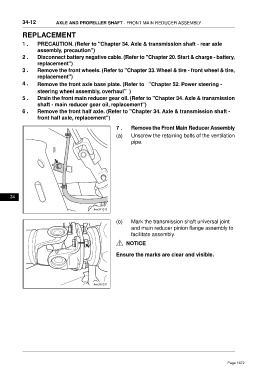

34-12 AXLE AND PROPELLER SHAFT - FRONT MAIN REDUCER ASSEMBLY

REPLACEMENT

1 . PRECAUTION. (Refer to "Chapter 34. Axle & transmission shaft - rear axle
assembly, precaution")
2 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
3 . Remove the front wheels. (Refer to "Chapter 33.Wheel & tire - front wheel & tire,
replacement")
4 . Remove the front axle base plate. (Refer to “Chapter 52. Power steering -
steering wheel assembly, overhaul”)
5 . Drain the front main reducer gear oil. (Refer to "Chapter 34. Axle & transmission
shaft - main reducer gear oil, replacement")
6 . Remove the front half axle. (Refer to "Chapter 34. Axle & transmission shaft -
front half axle, replacement")

7 . Remove the Front Main Reducer Assembly
(a) Unscrew the retaining bolts of the ventilation
pipe.

34

(b) Mark the transmission shaft universal joint
and main reducer pinion flange assembly to
facilitate assembly.
NOTICE

Ensure the marks are clear and visible.
