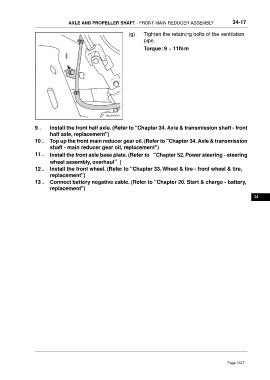

Page 1677 - Foton Workshop Manual - Tunland (AT)

AXLE AND PROPELLER SHAFT - FRONT MAIN REDUCER ASSEMBLY 34-17

(g) Tighten the retaining bolts of the ventilation
pipe.
Torque: 9 ~ 11N·m

9 . Install the front half axle. (Refer to "Chapter 34. Axle & transmission shaft - front
half axle, replacement")
10 . Top up the front main reducer gear oil. (Refer to "Chapter 34. Axle & transmission
shaft - main reducer gear oil, replacement")
11 . Install the front axle base plate. (Refer to “Chapter 52. Power steering - steering
wheel assembly, overhaul”)
12 . Install the front wheel. (Refer to "Chapter 33. Wheel & tire - front wheel & tire,
replacement")
13 . Connect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
34

Page 1677
