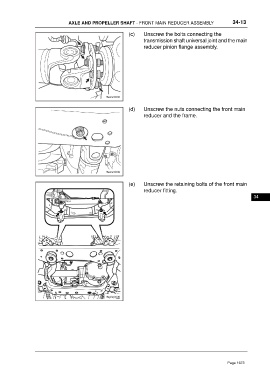

AXLE AND PROPELLER SHAFT - FRONT MAIN REDUCER ASSEMBLY                     34-13

                                                           (c)    Unscrew the bolts connecting the
                                                                  transmission shaft universal joint and the main
                                                                  reducer pinion flange assembly.















                                                           (d)    Unscrew the nuts connecting the front main
                                                                  reducer and the frame.

















                                                           (e)    Unscrew the retaining bolts of the front main
                                                                  reducer fitting.
                                                                                                                     34
