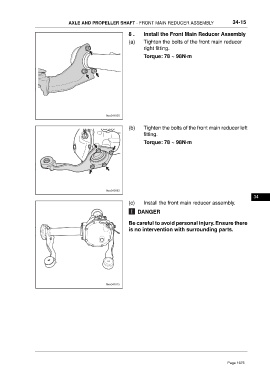

AXLE AND PROPELLER SHAFT - FRONT MAIN REDUCER ASSEMBLY                     34-15

                                                           8 .    Install the Front Main Reducer Assembly
                                                           (a)    Tighten the bolts of the front main reducer
                                                                  right fitting.
                                                                  Torque: 78 ~ 98N·m



















                                                           (b)    Tighten the bolts of the front main reducer left
                                                                  fitting.

                                                                  Torque: 78 ~ 98N·m













                                                                                                                     34
                                                           (c)    Install the front main reducer assembly.
                                                                DANGER

                                                           Be careful to avoid personal injury. Ensure there
                                                           is no intervention with surrounding parts.
