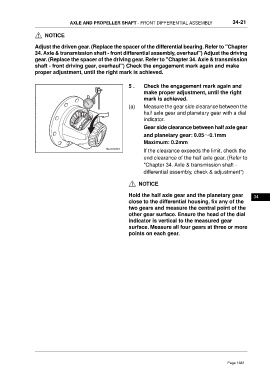

AXLE AND PROPELLER SHAFT - FRONT DIFFERENTIAL ASSEMBLY 34-21

NOTICE

Adjust the driven gear. (Replace the spacer of the differential bearing. Refer to "Chapter
34. Axle & transmission shaft - front differential assembly, overhaul") Adjust the driving
gear. (Replace the spacer of the driving gear. Refer to "Chapter 34. Axle & transmission
shaft - front driving gear, overhaul") Check the engagement mark again and make
proper adjustment, until the right mark is achieved.

5 . Check the engagement mark again and
make proper adjustment, until the right
mark is achieved.

(a) Measure the gear side clearance between the
half axle gear and planetary gear with a dial
indicator.
Gear side clearance between half axle gear

and planetary gear: 0.05～0.1mm
Maximum: 0.2mm
If the clearance exceeds the limit, check the
end clearance of the half axle gear. (Refer to
"Chapter 34. Axle & transmission shaft -
differential assembly, check & adjustment")

NOTICE

Hold the half axle gear and the planetary gear 34
close to the differential housing, fix any of the
two gears and measure the central point of the
other gear surface. Ensure the head of the dial
indicator is vertical to the measured gear
surface. Measure all four gears at three or more
points on each gear.
