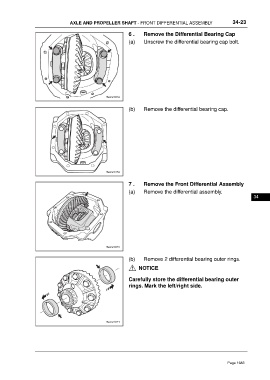

AXLE AND PROPELLER SHAFT - FRONT DIFFERENTIAL ASSEMBLY 34-23
6 . Remove the Differential Bearing Cap
(a) Unscrew the differential bearing cap bolt.
(b) Remove the differential bearing cap.
7 . Remove the Front Differential Assembly
(a) Remove the differential assembly.
34
(b) Remove 2 differential bearing outer rings.
NOTICE
Carefully store the differential bearing outer
rings. Mark the left/right side.
