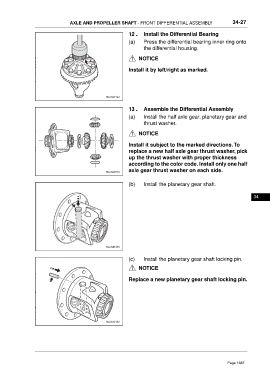

AXLE AND PROPELLER SHAFT - FRONT DIFFERENTIAL ASSEMBLY 34-27

12 . Install the Differential Bearing
(a) Press the differential bearing inner ring onto
the differential housing.

NOTICE

Install it by left/right as marked.

13 . Assemble the Differential Assembly
(a) Install the half axle gear, planetary gear and
thrust washer.

NOTICE

Install it subject to the marked directions.To
replace a new half axle gear thrust washer, pick
up the thrust washer with proper thickness
according to the color code. Install only one half
axle gear thrust washer on each side.

(b) Install the planetary gear shaft.

34

(c) Install the planetary gear shaft locking pin.
NOTICE

Replace a new planetary gear shaft locking pin.
