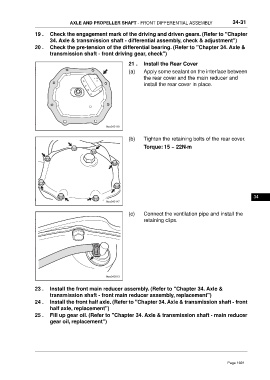

Page 1691 - Foton Workshop Manual - Tunland (AT)

AXLE AND PROPELLER SHAFT - FRONT DIFFERENTIAL ASSEMBLY 34-31

19 . Check the engagement mark of the driving and driven gears. (Refer to "Chapter
34. Axle & transmission shaft - differential assembly, check & adjustment")
20 . Check the pre-tension of the differential bearing. (Refer to "Chapter 34. Axle &
transmission shaft - front driving gear, check")

21 . Install the Rear Cover
(a) Apply some sealant on the interface between
the rear cover and the main reducer and
install the rear cover in place.

(b) Tighten the retaining bolts of the rear cover.
Torque: 15 ~ 22N·m

34

(c) Connect the ventilation pipe and install the
retaining clips.

23 . Install the front main reducer assembly. (Refer to "Chapter 34. Axle &
transmission shaft - front main reducer assembly, replacement")
24 . Install the front half axle. (Refer to "Chapter 34. Axle & transmission shaft - front
half axle, replacement")
25 . Fill up gear oil. (Refer to "Chapter 34. Axle & transmission shaft - main reducer
gear oil, replacement")
