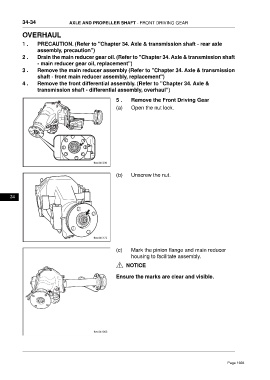

34-34 AXLE AND PROPELLER SHAFT - FRONT DRIVING GEAR

OVERHAUL

1 . PRECAUTION. (Refer to "Chapter 34. Axle & transmission shaft - rear axle
assembly, precaution")
2 . Drain the main reducer gear oil. (Refer to "Chapter 34. Axle & transmission shaft
- main reducer gear oil, replacement")
3 . Remove the main reducer assembly (Refer to "Chapter 34. Axle & transmission
shaft - front main reducer assembly, replacement")
4 . Remove the front differential assembly. (Refer to "Chapter 34. Axle &
transmission shaft - differential assembly, overhaul")

5 . Remove the Front Driving Gear
(a) Open the nut lock.

(b) Unscrew the nut.

34

(c) Mark the pinion flange and main reducer
housing to facilitate assembly.
NOTICE

Ensure the marks are clear and visible.
