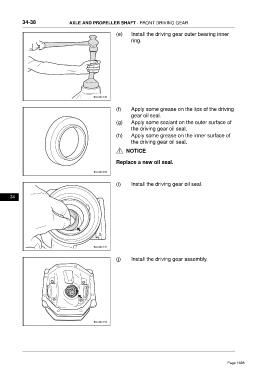

34-38 AXLE AND PROPELLER SHAFT - FRONT DRIVING GEAR
(e) Install the driving gear outer bearing inner
ring.
(f) Apply some grease on the lips of the driving
gear oil seal.
(g) Apply some sealant on the outer surface of
the driving gear oil seal.
(h) Apply some grease on the inner surface of
the driving gear oil seal.
NOTICE
Replace a new oil seal.
(i) Install the driving gear oil seal.
34
(j) Install the driving gear assembly.
