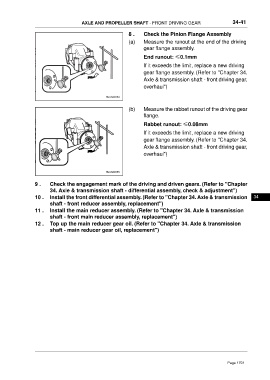

AXLE AND PROPELLER SHAFT - FRONT DRIVING GEAR 34-41

8 . Check the Pinion Flange Assembly
(a) Measure the runout at the end of the driving
gear flange assembly.

End runout: ≤0.1mm
If it exceeds the limit, replace a new driving
gear flange assembly. (Refer to "Chapter 34.
Axle & transmission shaft - front driving gear,
overhaul")

(b) Measure the rabbet runout of the driving gear
flange.
Rabbet runout: ≤0.08mm

If it exceeds the limit, replace a new driving
gear flange assembly. (Refer to "Chapter 34.
Axle & transmission shaft - front driving gear,
overhaul")

9 . Check the engagement mark of the driving and driven gears. (Refer to "Chapter
34. Axle & transmission shaft - differential assembly, check & adjustment")
10 . Install the front differential assembly. (Refer to "Chapter 34. Axle & transmission 34
shaft - front reducer assembly, replacement")
11 . Install the main reducer assembly. (Refer to "Chapter 34. Axle & transmission
shaft - front main reducer assembly, replacement")
12 . Top up the main reducer gear oil. (Refer to "Chapter 34. Axle & transmission
shaft - main reducer gear oil, replacement")
