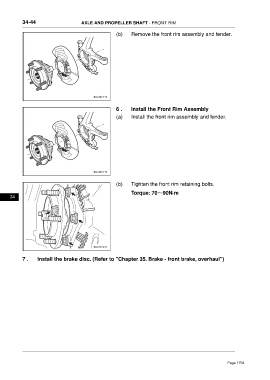

Page 1704 - Foton Workshop Manual - Tunland (AT)
P. 1704
34-44 AXLE AND PROPELLER SHAFT - FRONT RIM
(b) Remove the front rim assembly and fender.
6 . Install the Front Rim Assembly
(a) Install the front rim assembly and fender.
(b) Tighten the front rim retaining bolts.
Torque: 70～90N·m
34
7 . Install the brake disc. (Refer to "Chapter 35. Brake - front brake, overhaul")
Page 1704
