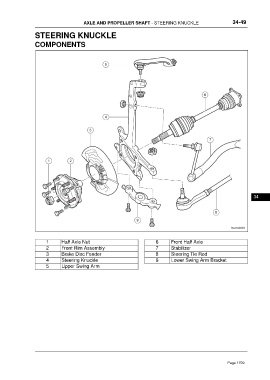

AXLE AND PROPELLER SHAFT - STEERING KNUCKLE 34-49
STEERING KNUCKLE
COMPONENTS
34
1 Half Axle Nut 6 Front Half Axle
2 Front Rim Assembly 7 Stabilizer
3 Brake Disc Fender 8 Steering Tie Rod
4 Steering Knuckle 9 Lower Swing Arm Bracket
5 Upper Swing Arm
