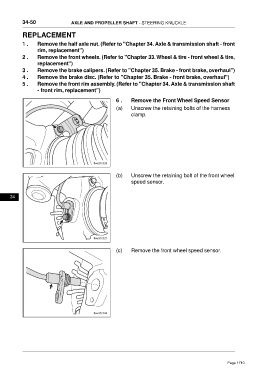

Page 1710 - Foton Workshop Manual - Tunland (AT)

34-50 AXLE AND PROPELLER SHAFT - STEERING KNUCKLE

REPLACEMENT

1 . Remove the half axle nut. (Refer to "Chapter 34. Axle & transmission shaft - front
rim, replacement")
2 . Remove the front wheels. (Refer to "Chapter 33.Wheel & tire - front wheel & tire,
replacement")
3 . Remove the brake calipers. (Refer to "Chapter 35. Brake - front brake, overhaul")
4 . Remove the brake disc. (Refer to "Chapter 35. Brake - front brake, overhaul")
5 . Remove the front rim assembly. (Refer to "Chapter 34. Axle & transmission shaft
- front rim, replacement")

6 . Remove the Front Wheel Speed Sensor
(a) Unscrew the retaining bolts of the harness
clamp.

(b) Unscrew the retaining bolt of the front wheel
speed sensor.

34

(c) Remove the front wheel speed sensor.
