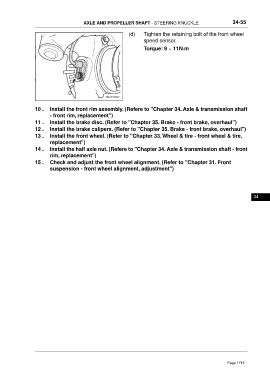

AXLE AND PROPELLER SHAFT - STEERING KNUCKLE 34-55

(d) Tighten the retaining bolt of the front wheel
speed sensor.
Torque: 9 ~ 11N·m

10 . Install the front rim assembly. (Refere to "Chapter 34. Axle & transmission shaft
- front rim, replacement")
11 . Install the brake disc. (Refer to "Chapter 35. Brake - front brake, overhaul")
12 . Install the brake calipers. (Refer to "Chapter 35. Brake - front brake, overhaul")
13 . Install the front wheel. (Refer to "Chapter 33. Wheel & tire - front wheel & tire,
replacement")
14 . Install the half axle nut. (Refere to "Chapter 34. Axle & transmission shaft - front
rim, replacement")
15 . Check and adjust the front wheel alignment. (Refer to "Chapter 31. Front
suspension - front wheel alignment, adjustment")
