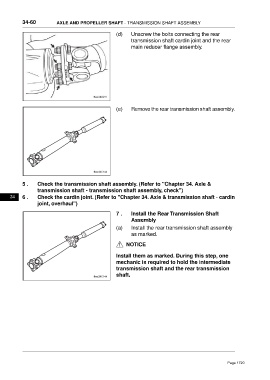

Page 1720 - Foton Workshop Manual - Tunland (AT)

34-60 AXLE AND PROPELLER SHAFT - TRANSMISSION SHAFT ASSEMBLY

(d) Unscrew the bolts connecting the rear
transmission shaft cardin joint and the rear
main reducer flange assembly.

(e) Remove the rear transmission shaft assembly.

5 . Check the transmission shaft assembly. (Refer to "Chapter 34. Axle &
transmission shaft - transmission shaft assembly, check")
34 6 . Check the cardin joint. (Refer to "Chapter 34. Axle & transmission shaft - cardin
joint, overhaul")

7 . Install the Rear Transmission Shaft
Assembly
(a) Install the rear transmission shaft assembly
as marked.
NOTICE

Install them as marked. During this step, one
mechanic is required to hold the intermediate
transmission shaft and the rear transmission
shaft.
