Page 1725 - Foton Workshop Manual - Tunland (AT)
P. 1725

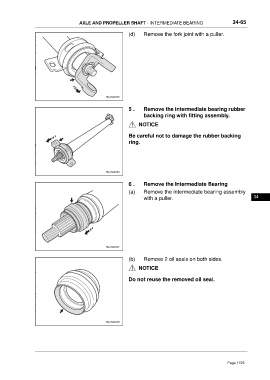

AXLE AND PROPELLER SHAFT - INTERMEDIATE BEARING 34-65
(d) Remove the fork joint with a puller.
5 . Remove the intermediate bearing rubber
backing ring with fitting assembly.
NOTICE
Be careful not to damage the rubber backing
ring.
6 . Remove the Intermediate Bearing
(a) Remove the intermediate bearing assembly
with a puller. 34
(b) Remove 2 oil seals on both sides.
NOTICE
Do not reuse the removed oil seal.
Page 1725
