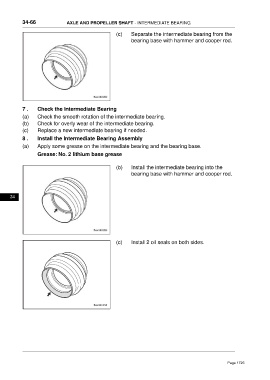

34-66 AXLE AND PROPELLER SHAFT - INTERMEDIATE BEARING
(c) Separate the intermediate bearing from the
bearing base with hammer and cooper rod.
7 . Check the Intermediate Bearing
(a) Check the smooth rotation of the intermediate bearing.
(b) Check for overly wear of the intermediate bearing.
(c) Replace a new intermediate bearing if needed.
8 . Install the Intermediate Bearing Assembly
(a) Apply some grease on the intermediate bearing and the bearing base.
Grease: No. 2 lithium base grease
(b) Install the intermediate bearing into the
bearing base with hammer and cooper rod.
34
(c) Install 2 oil seals on both sides.
