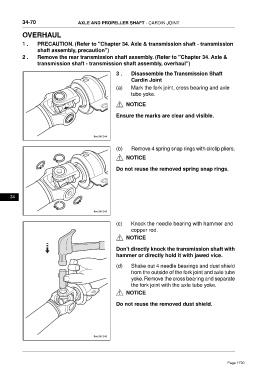

34-70 AXLE AND PROPELLER SHAFT - CARDIN JOINT

OVERHAUL

1 . PRECAUTION. (Refer to "Chapter 34. Axle & transmission shaft - transmission
shaft assembly, precaution")
2 . Remove the rear transmission shaft assembly. (Refer to "Chapter 34. Axle &
transmission shaft - transmission shaft assembly, overhaul")

3 . Disassemble the Transmission Shaft
Cardin Joint
(a) Mark the fork joint, cross bearing and axle
tube yoke.

NOTICE

Ensure the marks are clear and visible.

(b) Remove 4 spring snap rings with circlip pliers.

NOTICE

Do not reuse the removed spring snap rings.

34

(c) Knock the needle bearing with hammer and
copper rod.

NOTICE

Don't directly knock the transmission shaft with
hammer or directly hold it with jawed vice.
(d) Shake out 4 needle bearings and dust shield
from the outside of the fork joint and axle tube
yoke. Remove the cross bearing and separate
the fork joint with the axle tube yoke.
NOTICE

Do not reuse the removed dust shield.
