Page 1729 - Foton Workshop Manual - Tunland (AT)
P. 1729

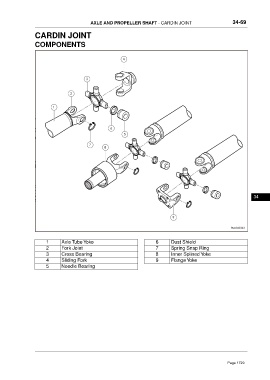

AXLE AND PROPELLER SHAFT - CARDIN JOINT 34-69
CARDIN JOINT
COMPONENTS
34
1 Axle Tube Yoke 6 Dust Shield
2 Fork Joint 7 Spring Snap Ring
3 Cross Bearing 8 Inner Splined Yoke
4 Sliding Fork 9 Flange Yoke
5 Needle Bearing
Page 1729
