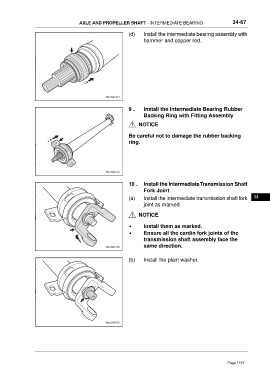

AXLE AND PROPELLER SHAFT - INTERMEDIATE BEARING 34-67
(d) Install the intermediate bearing assembly with
hammer and copper rod.
9 . Install the Intermediate Bearing Rubber
Backing Ring with Fitting Assembly
NOTICE
Be careful not to damage the rubber backing
ring.
10 . Install the Intermediate Transmission Shaft
Fork Joint
(a) Install the intermediate transmission shaft fork 34
joint as marked.
NOTICE
• Install them as marked.
• Ensure all the cardin fork joints of the
transmission shaft assembly face the
same direction.
(b) Install the plain washer.
