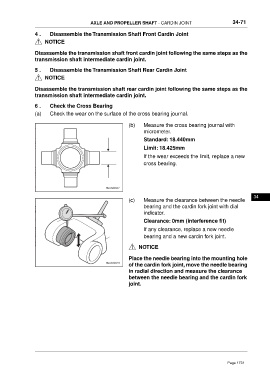

AXLE AND PROPELLER SHAFT - CARDIN JOINT 34-71

4 . Disassemble the Transmission Shaft Front Cardin Joint
NOTICE

Disassemble the transmission shaft front cardin joint following the same steps as the
transmission shaft intermediate cardin joint.

5 . Disassemble the Transmission Shaft Rear Cardin Joint
NOTICE

Disassemble the transmission shaft rear cardin joint following the same steps as the
transmission shaft intermediate cardin joint.

6 . Check the Cross Bearing

(a) Check the wear on the surface of the cross bearing journal.

(b) Measure the cross bearing journal with
micrometer.
Standard: 18.440mm
Limit: 18.425mm

If the wear exceeds the limit, replace a new
cross bearing.

34
(c) Measure the clearance between the needle
bearing and the cardin fork joint with dial
indicator.
Clearance: 0mm (interference fit)
If any clearance, replace a new needle
bearing and a new cardin fork joint.

NOTICE

Place the needle bearing into the mounting hole
of the cardin fork joint, move the needle bearing
in radial direction and measure the clearance
between the needle bearing and the cardin fork
joint.
