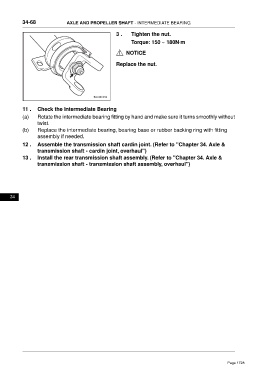

Page 1728 - Foton Workshop Manual - Tunland (AT)

34-68 AXLE AND PROPELLER SHAFT - INTERMEDIATE BEARING

3 . Tighten the nut.
Torque: 150 ~ 180N·m

NOTICE

Replace the nut.

11 . Check the Intermediate Bearing
(a) Rotate the intermediate bearing fitting by hand and make sure it turns smoothly without
twist.
(b) Replace the intermediate bearing, bearing base or rubber backing ring with fitting
assembly if needed.
12 . Assemble the transmission shaft cardin joint. (Refer to "Chapter 34. Axle &
transmission shaft - cardin joint, overhaul")
13 . Install the rear transmission shaft assembly. (Refer to "Chapter 34. Axle &
transmission shaft - transmission shaft assembly, overhaul")

34
