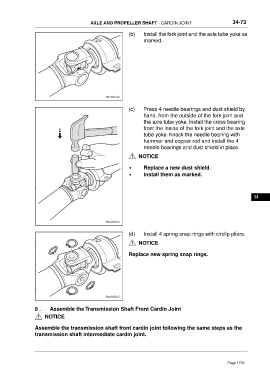

AXLE AND PROPELLER SHAFT - CARDIN JOINT 34-73

(b) Install the fork joint and the axle tube yoke as
marked.

(c) Press 4 needle bearings and dust shield by
hand, from the outside of the fork joint and
the axle tube yoke. Install the cross bearing
from the inside of the fork joint and the axle
tube yoke. Knock the needle bearing with
hammer and copper rod and install the 4
needle bearings and dust shield in place.

NOTICE

• Replace a new dust shield.
• Install them as marked.

34

(d) Install 4 spring snap rings with circlip pliers.
NOTICE

Replace new spring snap rings.

8 . Assemble the Transmission Shaft Front Cardin Joint
NOTICE

Assemble the transmission shaft front cardin joint following the same steps as the
transmission shaft intermediate cardin joint.
