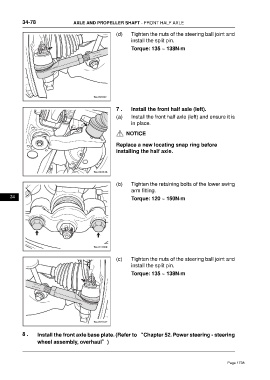

34-78 AXLE AND PROPELLER SHAFT - FRONT HALF AXLE

(d) Tighten the nuts of the steering ball joint and
install the split pin.
Torque: 135 ~ 138N·m

7 . Install the front half axle (left).
(a) Install the front half axle (left) and ensure it is
in place.

NOTICE

Replace a new locating snap ring before
installing the half axle.

(b) Tighten the retaining bolts of the lower swing
arm fitting.
34
Torque: 120 ~ 150N·m

(c) Tighten the nuts of the steering ball joint and
install the split pin.

Torque: 135 ~ 138N·m

8 . Install the front axle base plate. (Refer to “Chapter 52. Power steering - steering
wheel assembly, overhaul”)
