34-80 AXLE AND PROPELLER SHAFT - REAR AXLE ASSEMBLY

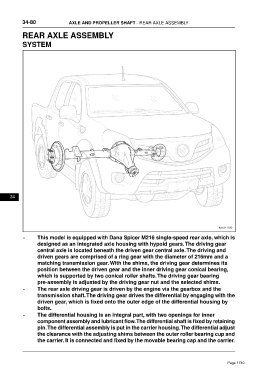

REAR AXLE ASSEMBLY

SYSTEM

34

• This model is equipped with Dana Spicer M216 single-speed rear axle, which is
designed as an integrated axle housing with hypoid gears.The driving gear
central axle is located beneath the driven gear central axle.The driving and
driven gears are comprised of a ring gear with the diameter of 216mm and a
matching transmission gear. With the shims, the driving gear determines its
position between the driven gear and the inner driving gear conical bearing,
which is supported by two conical roller shafts.The driving gear bearing
pre-assembly is adjusted by the driving gear nut and the selected shims.
• The rear axle driving gear is driven by the engine via the gearbox and the
transmission shaft.The driving gear drives the differential by engaging with the
driven gear, which is fixed onto the outer edge of the differential housing by
bolts.
• The differential housing is an integral part, with two openings for inner
component assembly and lubricant flow.The differential shaft is fixed by retaining
pin.The differential assembly is put in the carrier housing.The differential adjust
the clearance with the adjusting shims between the outer roller bearing cup and
the carrier. It is connected and fixed by the movable bearing cap and the carrier.
