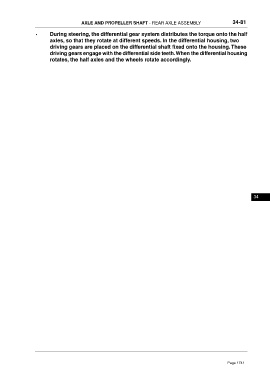

AXLE AND PROPELLER SHAFT - REAR AXLE ASSEMBLY 34-81
• During steering, the differential gear system distributes the torque onto the half
axles, so that they rotate at different speeds. In the differential housing, two
driving gears are placed on the differential shaft fixed onto the housing.These
driving gears engage with the differential side teeth.When the differential housing
rotates, the half axles and the wheels rotate accordingly.
