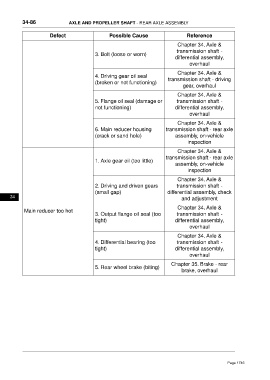

34-86 AXLE AND PROPELLER SHAFT - REAR AXLE ASSEMBLY
Defect Possible Cause Reference
Chapter 34. Axle &
transmission shaft -
3. Bolt (loose or worn)
differential assembly,
overhaul
Chapter 34. Axle &
4. Driving gear oil seal
transmission shaft - driving
(broken or not functioning)
gear, overhaul
Chapter 34. Axle &
5. Flange oil seal (damage or transmission shaft -
not functioning) differential assembly,
overhaul
Chapter 34. Axle &
6. Main reducer housing transmission shaft - rear axle
(crack or sand hole) assembly, on-vehicle
inspection
Chapter 34. Axle &
transmission shaft - rear axle
1. Axle gear oil (too little)
assembly, on-vehicle
inspection
Chapter 34. Axle &
2. Driving and driven gears transmission shaft -
(small gap) differential assembly, check
34
and adjustment
Chapter 34. Axle &
Main reducer too hot
3. Output flange oil seal (too transmission shaft -
tight) differential assembly,
overhaul
Chapter 34. Axle &
4. Differential bearing (too transmission shaft -
tight) differential assembly,
overhaul
Chapter 35. Brake - rear
5. Rear wheel brake (biting)
brake, overhaul
