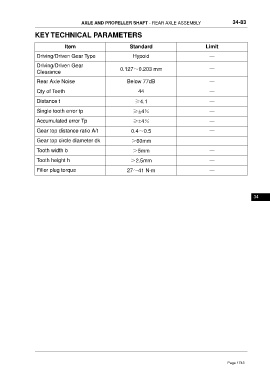

AXLE AND PROPELLER SHAFT - REAR AXLE ASSEMBLY 34-83

KEY TECHNICAL PARAMETERS

Item Standard Limit
Driving/Driven Gear Type Hypoid —

Driving/Driven Gear
0.127～0.203 mm —
Clearance
Rear Axle Noise Below 77dB —

Qty of Teeth 44 —

Distance t ≥4.1 —

Single tooth error tp ≥±4％ —

Accumulated error Tp ≥±4％ —
Gear top distance ratio A/t 0.4～0.5 —

Gear top circle diameter dk ＞60mm —

Tooth width b ＞5mm —

Tooth height h ＞2.5mm —

Filler plug torque 27～41 N·m —

34
