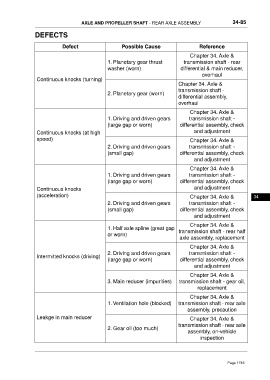

AXLE AND PROPELLER SHAFT - REAR AXLE ASSEMBLY 34-85
DEFECTS
Defect Possible Cause Reference
Chapter 34. Axle &
1. Planetary gear thrust transmission shaft - rear
washer (worn) differential & main reducer,
overhaul
Continuous knocks (turning)
Chapter 34. Axle &
transmission shaft -
2. Planetary gear (worn)
differential assembly,
overhaul
Chapter 34. Axle &
1. Driving and driven gears transmission shaft -
(large gap or worn) differential assembly, check
Continuous knocks (at high and adjustment
speed) Chapter 34. Axle &
2. Driving and driven gears transmission shaft -
(small gap) differential assembly, check
and adjustment
Chapter 34. Axle &
1. Driving and driven gears transmission shaft -
(large gap or worn) differential assembly, check
Continuous knocks and adjustment
(acceleration) Chapter 34. Axle & 34
2. Driving and driven gears transmission shaft -
(small gap) differential assembly, check
and adjustment
Chapter 34. Axle &
1. Half axle spline (great gap
transmission shaft - rear half
or worn)
axle assembly, replacement
Chapter 34. Axle &
2. Driving and driven gears transmission shaft -
Intermitted knocks (driving)
(large gap or worn) differential assembly, check
and adjustment
Chapter 34. Axle &
3. Main reducer (impurities) transmission shaft - gear oil,
replacement
Chapter 34. Axle &
1. Ventilation hole (blocked) transmission shaft - rear axle
assembly, precaution
Leakge in main reducer Chapter 34. Axle &
transmission shaft - rear axle
2. Gear oil (too much)
assembly, on-vehicle
inspection
