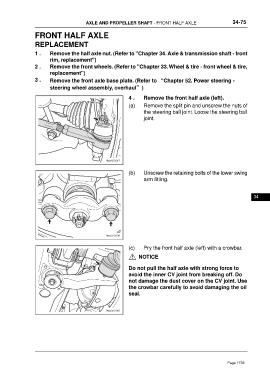

AXLE AND PROPELLER SHAFT - FRONT HALF AXLE 34-75

FRONT HALF AXLE

REPLACEMENT
1 . Remove the half axle nut. (Refer to "Chapter 34. Axle & transmission shaft - front
rim, replacement")
2 . Remove the front wheels. (Refer to "Chapter 33.Wheel & tire - front wheel & tire,
replacement")
3 . Remove the front axle base plate. (Refer to “Chapter 52. Power steering -
steering wheel assembly, overhaul”)

4 . Remove the front half axle (left).
(a) Remove the split pin and unscrew the nuts of
the steering ball joint. Loose the steering ball
joint.

(b) Unscrew the retaining bolts of the lower swing
arm fitting.

34

(c) Pry the front half axle (left) with a crowbar.
NOTICE

Do not pull the half axle with strong force to
avoid the inner CV joint from breaking off. Do
not damage the dust cover on the CV joint. Use
the crowbar carefully to avoid damaging the oil
seal.
