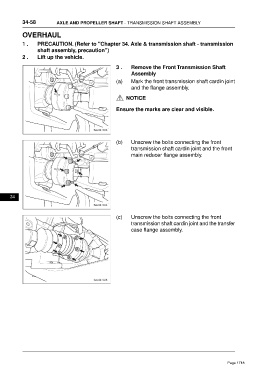

34-58 AXLE AND PROPELLER SHAFT - TRANSMISSION SHAFT ASSEMBLY

OVERHAUL

1 . PRECAUTION. (Refer to "Chapter 34. Axle & transmission shaft - transmission
shaft assembly, precaution")
2 . Lift up the vehicle.
3 . Remove the Front Transmission Shaft
Assembly
(a) Mark the front transmission shaft cardin joint
and the flange assembly.

NOTICE

Ensure the marks are clear and visible.

(b) Unscrew the bolts connecting the front
transmission shaft cardin joint and the front
main reducer flange assembly.

34

(c) Unscrew the bolts connecting the front
transmission shaft cardin joint and the transfer
case flange assembly.
