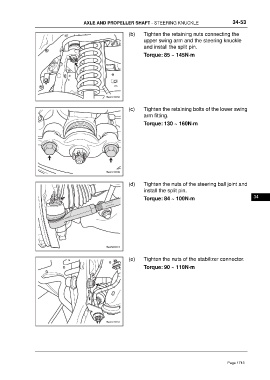

AXLE AND PROPELLER SHAFT - STEERING KNUCKLE 34-53

(b) Tighten the retaining nuts connecting the
upper swing arm and the steering knuckle
and install the split pin.
Torque: 85 ~ 145N·m

(c) Tighten the retaining bolts of the lower swing
arm fitting.
Torque: 130 ~ 160N·m

(d) Tighten the nuts of the steering ball joint and
install the split pin.

Torque: 84 ~ 100N·m 34

(e) Tighten the nuts of the stabilizer connector.
Torque: 90 ~ 110N·m
