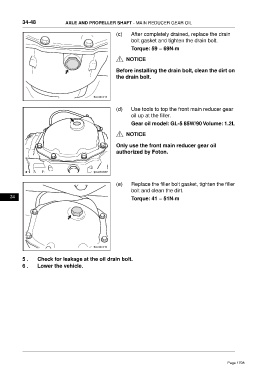

34-48 AXLE AND PROPELLER SHAFT - MAIN REDUCER GEAR OIL

(c) After completely drained, replace the drain
bolt gasket and tighten the drain bolt.
Torque: 59 ~ 69N·m

NOTICE

Before installing the drain bolt, clean the dirt on
the drain bolt.

(d) Use tools to top the front main reducer gear
oil up at the filler.
Gear oil model: GL-5 85W/90 Volume: 1.2L

NOTICE

Only use the front main reducer gear oil
authorized by Foton.

(e) Replace the filler bolt gasket, tighten the filler
bolt and clean the dirt.
34
Torque: 41 ~ 51N·m

5 . Check for leakage at the oil drain bolt.
6 . Lower the vehicle.
