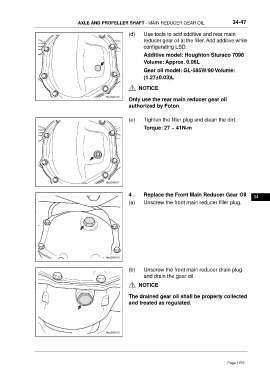

Page 1707 - Foton Workshop Manual - Tunland (AT)

AXLE AND PROPELLER SHAFT - MAIN REDUCER GEAR OIL 34-47

(d) Use tools to add additive and rear main
reducer gear oil at the filler. Add additive while
configurating LSD.
Additive model: Houghton Sturaco 7098
Volume: Approx. 0.06L
Gear oil model: GL-585W/90 Volume:
(1.27±0.03)L

NOTICE

Only use the rear main reducer gear oil
authorized by Foton.

(e) Tighten the filler plug and clean the dirt.

Torque: 27 ~ 41N·m

4 . Replace the Front Main Reducer Gear Oil
34
(a) Unscrew the front main reducer filler plug.

(b) Unscrew the front main reducer drain plug
and drain the gear oil.

NOTICE

The drained gear oil shall be properly collected
and treated as regulated.

Page 1707
