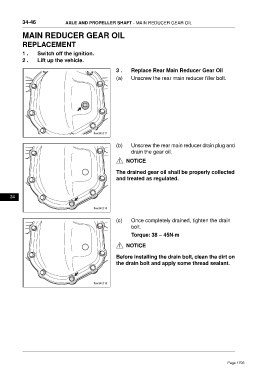

Page 1706 - Foton Workshop Manual - Tunland (AT)
P. 1706
34-46 AXLE AND PROPELLER SHAFT - MAIN REDUCER GEAR OIL
MAIN REDUCER GEAR OIL
REPLACEMENT
1 . Switch off the ignition.
2 . Lift up the vehicle.
3 . Replace Rear Main Reducer Gear Oil
(a) Unscrew the rear main reducer filler bolt.
(b) Unscrew the rear main reducer drain plug and
drain the gear oil.
NOTICE
The drained gear oil shall be properly collected
and treated as regulated.
34
(c) Once completely drained, tighten the drain
bolt.
Torque: 38 ~ 45N·m
NOTICE
Before installing the drain bolt, clean the dirt on
the drain bolt and apply some thread sealant.
Page 1706
