P. 1703

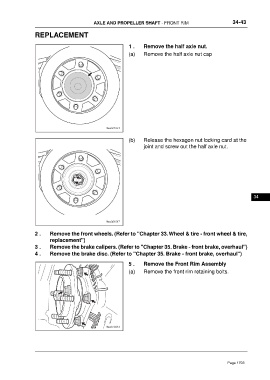

AXLE AND PROPELLER SHAFT - FRONT RIM 34-43
REPLACEMENT
1 . Remove the half axle nut.
(a) Remove the half axle nut cap
(b) Release the hexagon nut locking card at the
joint and screw out the half axle nut.
34
2 . Remove the front wheels. (Refer to "Chapter 33.Wheel & tire - front wheel & tire,
replacement")
3 . Remove the brake calipers. (Refer to "Chapter 35. Brake - front brake, overhaul")
4 . Remove the brake disc. (Refer to "Chapter 35. Brake - front brake, overhaul")
5 . Remove the Front Rim Assembly
(a) Remove the front rim retaining bolts.
