P. 1699

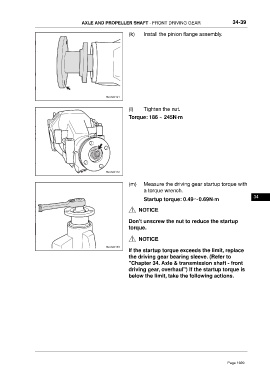

AXLE AND PROPELLER SHAFT - FRONT DRIVING GEAR 34-39
(k) Install the pinion flange assembly.
(l) Tighten the nut.
Torque: 186 ~ 245N·m
(m) Measure the driving gear startup torque with
a torque wrench.
34
Startup torque: 0.49～0.69N·m
NOTICE
Don't unscrew the nut to reduce the startup
torque.
NOTICE
If the startup torque exceeds the limit, replace
the driving gear bearing sleeve. (Refer to
"Chapter 34. Axle & transmission shaft - front
driving gear, overhaul") If the startup torque is
below the limit, take the following actions.
