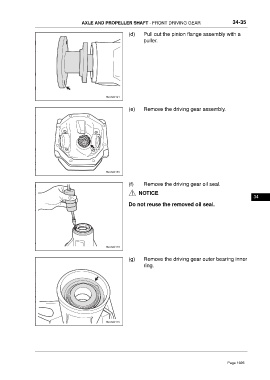

AXLE AND PROPELLER SHAFT - FRONT DRIVING GEAR 34-35
(d) Pull out the pinion flange assembly with a
puller.
(e) Remove the driving gear assembly.
(f) Remove the driving gear oil seal.
NOTICE
34
Do not reuse the removed oil seal.
(g) Remove the driving gear outer bearing inner
ring.
